CellNet Architecture

Purpose and Scope

CellNet is FLARE’s unified communication layer that provides secure, scalable messaging between distributed federated learning components. It abstracts away network transport details and provides a consistent API for both small messages and large data transfers.

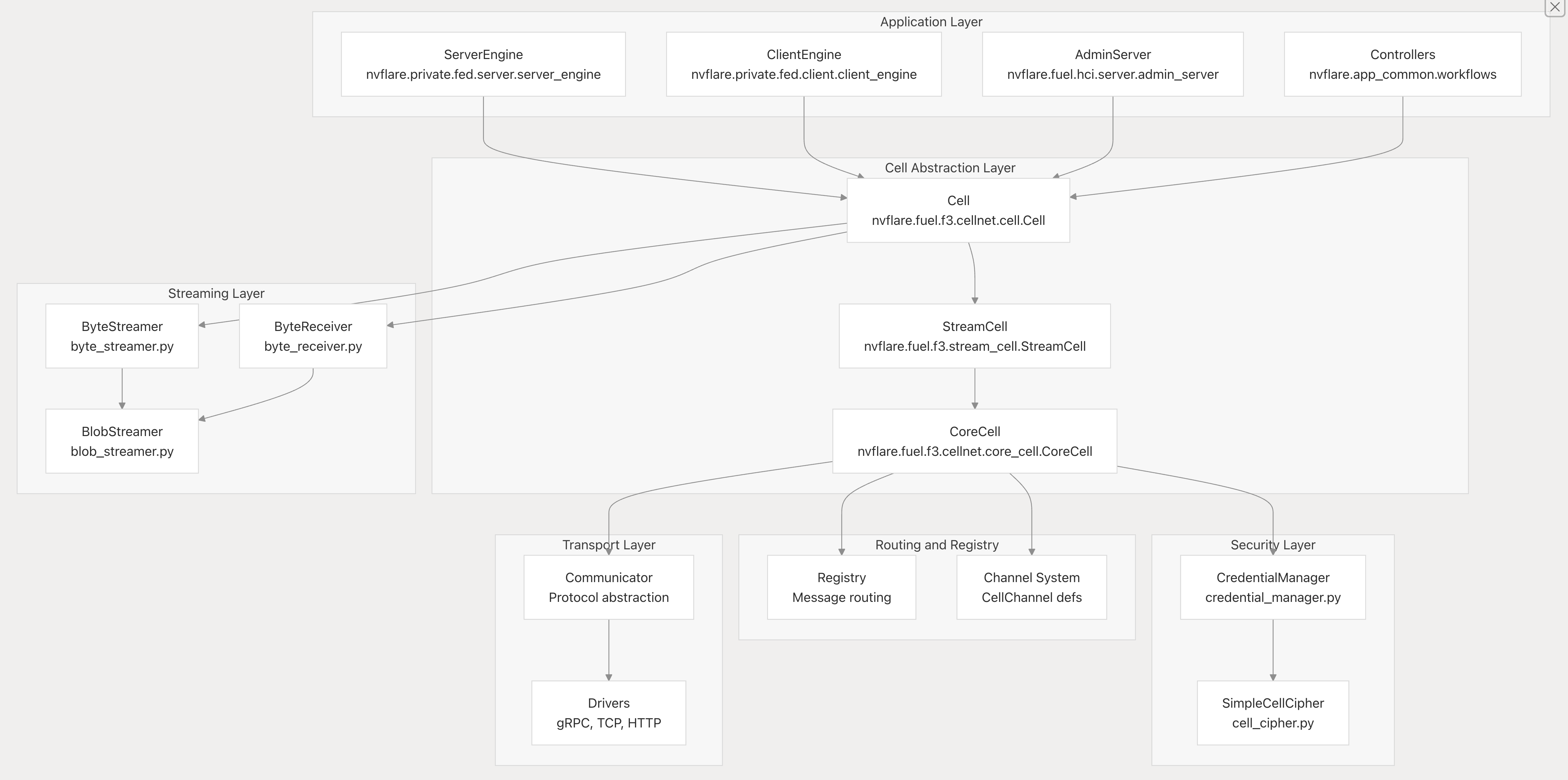

Position in NVFLARE Architecture: CellNet sits between the application layer (Controllers, Executors, Admin commands) and the network transport layer (gRPC, TCP, HTTP drivers). All NVFLARE components communicate through CellNet, including:

• Server-to-client task distribution

• Client-to-server result submission

• Peer-to-peer communication

• Admin command execution

• Cross-site auxiliary communication

• Job deployment and management

Key Design Goals

• Unified API: Single interface for both small messages and large data streams

• Transport Agnostic: Supports multiple network protocols (gRPC, TCP, HTTP)

• Hierarchical Addressing: FQCN-based routing for multi-level cell hierarchies

• Secure Communication: Built-in encryption and authentication

• Flow Control: Automatic chunking and flow control for large transfers

Three-Layer Architecture

• CoreCell: Basic message routing, connection management, security

• StreamCell: Large data streaming with chunking and flow control

• Cell: High-level request/reply patterns with automatic channel detection

Layered Cell Architecture

Three-Layer Design

The CellNet architecture consists of three layers, each extending the previous:

Layer 1: CoreCell - Basic Message Infrastructure

CoreCell provides the fundamental messaging infrastructure:

Key Responsibilities:

• Message Handling - Routes messages to appropriate handlers based on channel/topic

• Connection Management - Manages listeners (incoming) and connectors (outgoing)

• Callback Registry - Stores message handlers in req_reg: Registry

• Agent Tracking - Maintains agents: Dict[str, CellAgent] for remote cells

• Request Tracking - Tracks pending requests in waiters: Dict[str, _Waiter]

• Security - Delegates to credential_manager: CredentialManager for encryption

Core Methods:

• send_request (channel, target, topic, request, timeout, …) - Send message and wait for reply

• fire_and_forget (channel, topic, targets, message, …) - Send without waiting

• broadcast_request (channel, topic, targets, request, …) - Send to multiple targets

• register_request_cb (channel, topic, cb, …) - Register callback for channel/topic

Layer 2: StreamCell - Large Data Transfer

The StreamCell adds large data transfer capabilities on top of CoreCell:

Key Components:

• cell: CoreCell - Wrapped CoreCell for basic messaging

• byte_streamer: ByteStreamer - Sends data as chunked streams

• byte_receiver: ByteReceiver - Receives and reassembles chunks

• blob_streamer: BlobStreamer - Optimized for in-memory BLOBs

Streaming Methods:

• send_stream (channel, topic, target, message, …) - Send byte stream with flow control

• send_blob (channel, topic, target, message, …) - Send BLOB (fits in memory)

• register_stream_cb (channel, topic, stream_cb, …) - Register stream receiver

• register_blob_cb (channel, topic, blob_cb, …) - Register BLOB receiver

Streaming Protocol:

• Automatic chunking into configurable chunk sizes (default 1MB)

• Flow control with sliding window and ACKs

• Progress tracking via StreamFuture

Layer 3: Cell - Intelligent Request/Reply

The Cell class provides a unified interface for streaming and non-streaming messages:

Key Features:

1. Dynamic Method Dispatch:

• Intercepts method calls and checks if the channel requires streaming via _is_stream_channel()

• Routes to the appropriate implementation:

  • Stream channels → _broadcast_request(), _send_request(), etc.

  • Non-stream channels → core_cell.broadcast_request(), etc.

2. Channel Classification:

Excluded Channels (non-streaming):

• CellChannel.CLIENT_MAIN - Admin commands

• CellChannel.SERVER_MAIN - Task distribution

• CellChannel.RETURN_ONLY - Internal replies

• CellChannel.CLIENT_COMMAND - Client commands

• Other internal channels

3. Request Tracking:

• Maintains requests_dict: Dict[str, SimpleWaiter] for pending requests

• SimpleWaiter tracks request state and receiving progress

• Reply handling via _process_reply()

4. Callback Adaptation:

• Adapter class wraps application callbacks for streaming

• Handles encoding/decoding of stream payloads

• Sends replies back via RETURN_ONLY channel

5. FQCN: Fully Qualified Cell Name:

Every cell is identified by a Fully Qualified Cell Name (FQCN), which is a dot-separated hierarchical name:

<site_name>[.<job_id>[.<rank>]]

6. End-to-end Encryption: All messages can be encrypted for secure communication.

Message Structure and Addressing

Channel and Topic Addressing

F3 CellNet routes messages using a two-level addressing scheme: channel and topic. This is stored in message headers:

Predefined Channels

Constant	Value	Purpose
CellChannel.CLIENT_MAIN	“admin”	Admin commands
CellChannel.SERVER_MAIN	“task”	Task distribution
CellChannel.AUX_COMMUNICATION	“aux_communication”	Application-defined
CellChannel.RETURN_ONLY	“return_only”	Internal reply routing
CellChannel.SERVER_COMMAND	“server_command”	Server commands

Communication Patterns

• Request-Reply Pattern – send request and wait for reply

• Fire-and-Forget Pattern – send message without waiting for reply

• Broadcast Pattern – send to multiple targets

Streaming Components Overview

The streaming system is organized into sender components, receiver components, and stream abstractions:

Key Streaming Classes:

Key Streaming Classes

Class	Purpose
ByteStreamer	Sends byte streams as chunks
ByteReceiver	Receives and reassembles chunks
BlobStreamer	Wraps blobs for streaming
TxTask	Per-stream sending task
RxTask	Per-stream receiving task

Performance and Statistics

CellNet includes comprehensive statistics collection for monitoring and debugging. Statistics are collected via StatsPoolManager with categories for different operation types and cell FQCNs.
