Dashboard in NVIDIA FLARE
As mentioned in Provisioning in NVIDIA FLARE, the NVIDIA FLARE system requires a set of startup kits that include private keys and certificates (signed by the root CA) for secure communication between components. The NVFLARE Dashboard UI in NVIDIA FLARE provides a streamlined way to collect information about clients and users from different organizations, and to generate startup kits for users to download.
For detailed information about provisioning, refer to Provisioning in NVIDIA FLARE. This section focuses on user interaction with the Dashboard and its backend APIs.
NVIDIA FLARE Dashboard Backend APIs

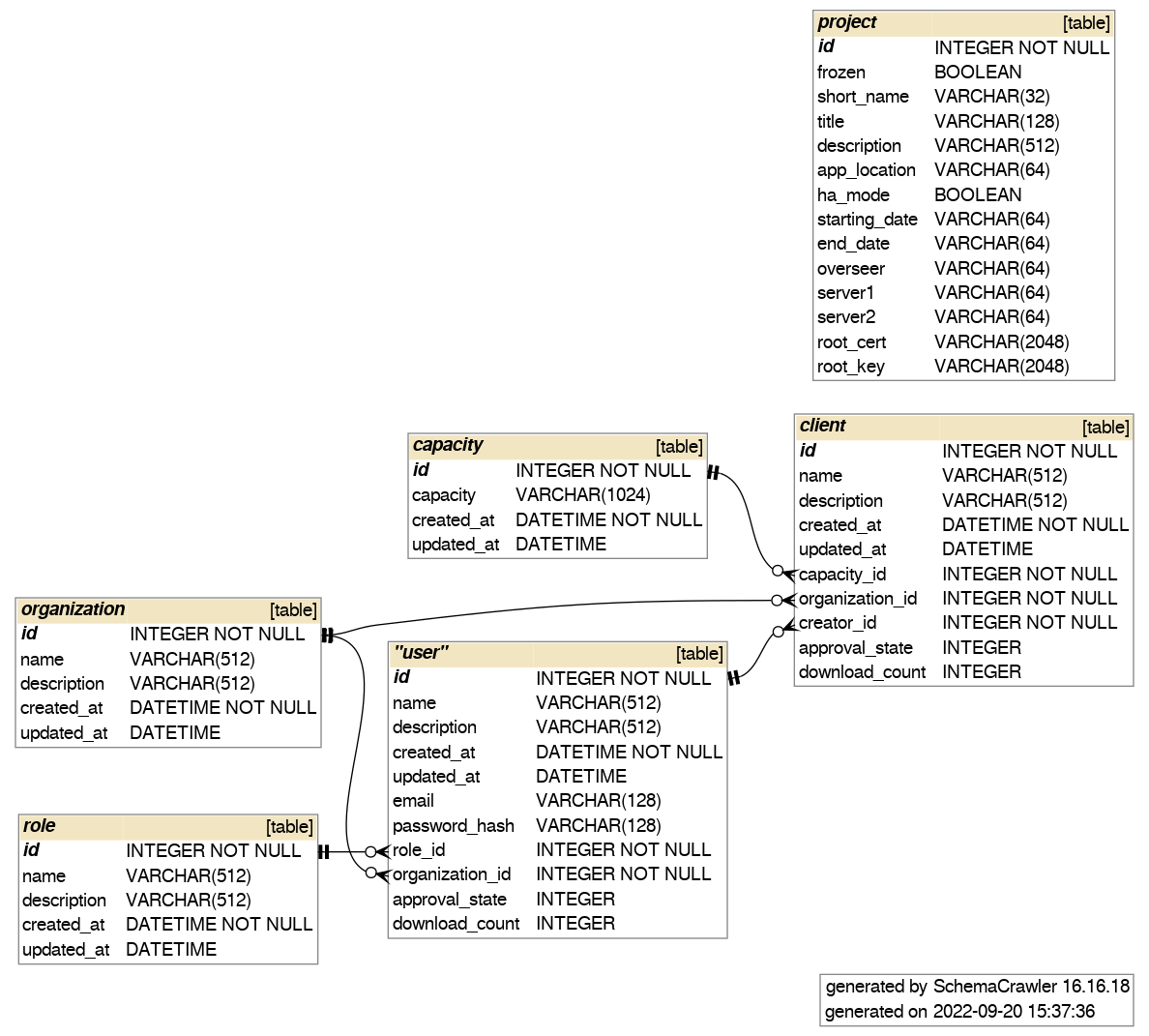

Architecture
The Dashboard backend APIs follow RESTful principles and define four main resources: Project, Organizations, Client, and User. There is exactly one Project per deployment, which includes information about the server. Clients represent NVIDIA FLARE client instances, while Users represent NVIDIA FLARE admin console users. The Organizations endpoint is a read-only operation that returns a list of currently registered organizations.
Details
APIs
The following is the complete definition of the backend APIs, written in OpenAPI 3.0 syntax. Developers can implement these APIs in different programming languages or create custom UIs while maintaining compatibility with the same API endpoints.
In NVIDIA FLARE 2.6, all API endpoints are prefixed with /nvflare-dashboard/api/v1/. For example,
the login endpoint is /nvflare-dashboard/api/v1/login.
openapi: "3.0.0"
info:
description: "This is the api definition for nvflare user/client registration, state update and other management functions."
version: 0.0.1
title: FLARE Participant Registration and Management
contact:
email: "nvflare@nvidia.com"
license:
name: Apache 2.0
servers:
- url: http://localhost:8443/api/v1
paths:
/login:
post:
summary: "Login and retrieve JWT"
description: ""
operationId: "login"
requestBody:
required: true
content:
application/json:
schema:
type: "object"
properties:
email:
type: "string"
example: "hello@world.com"
password:
type: "string"
example: "1234"
responses:
"200":
description: Login OK
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
user:
type: "object"
properties:
id:
type: "string"
email:
type: "string"
role:
type: "string"
access_token:
type: "string"
"401":
description: Unauthorized
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/project:
patch:
security:
- bearerAuth: []
summary: "Set the project"
description: ""
operationId: "patch_project"
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/Project'
responses:
"200":
description: Project patched
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
project:
$ref: '#/components/schemas/Project'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
get:
summary: Get project
operationId: get_project
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
project:
$ref: '#/components/schemas/Project'
/servers/{id}/blob:
post:
security:
- bearerAuth: []
summary: "Get server startup kit"
operationId: "get_server_blob_by_id"
parameters:
- name: "id"
in: "path"
description: "The id that needs to be fetched."
required: true
schema:
type: "string"
requestBody:
required: true
content:
application/json:
schema:
type: "object"
properties:
pin:
type: string
responses:
"200":
description: API accepted
content:
application/zip:
schema:
type: "string"
format: "binary"
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/organizations:
get:
summary: Get a list of all organization names
operationId: get_orgs
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
org_list:
type: array
items:
type: "string"
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/clients:
post:
security:
- bearerAuth: []
summary: "Add a new client entity to the study"
description: ""
operationId: "add_client"
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/BaseClient'
responses:
"201":
description: Resource created
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspClient'
get:
security:
- bearerAuth: []
summary: Get a list of all clients
operationId: get_clients
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client_list:
$ref: '#/components/schemas/ListOfClients'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/clients/{id}:
patch:
security:
- bearerAuth: []
summary: "Update items of one client by ID"
description: "Return updated client"
operationId: "update_client_by_id"
parameters:
- name: "id"
in: "path"
description: "id that need to be updated"
required: true
schema:
type: "string"
requestBody:
required: true
content:
application/json:
schema:
$ref: "#/components/schemas/BaseClient"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspClient'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
get:
security:
- bearerAuth: []
summary: "Find client by ID"
description: "Returns a single pet"
operationId: "find_client_by_id"
parameters:
- name: id
in: path
required: true
schema:
type: "string"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspClient'
delete:
security:
- bearerAuth: []
summary: "Deletes a client"
description: ""
operationId: "delete_client"
parameters:
- name: id
in: path
required: true
schema:
type: "string"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/clients/{id}/blob:
post:
security:
- bearerAuth: []
summary: "Get client startup kit"
operationId: "get_client_blob_by_id"
parameters:
- name: "id"
in: "path"
description: "The id that needs to be fetched."
required: true
schema:
type: "string"
requestBody:
required: true
content:
application/json:
schema:
type: "object"
properties:
pin:
type: string
responses:
"200":
description: API accepted
content:
application/zip:
schema:
type: "string"
format: "binary"
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/users:
post:
summary: "Create user"
description: "This can only be done by the logged in user."
operationId: "create_user"
requestBody:
required: true
content:
application/json:
schema:
$ref: '#/components/schemas/RqsUser'
responses:
"201":
description: Resource created
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspUser'
get:
security:
- bearerAuth: []
summary: "Get all users"
description: ""
operationId: "get_users"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client_list:
$ref: '#/components/schemas/ListOfUsers'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/users/{id}:
get:
security:
- bearerAuth: []
summary: "Get user by user id"
operationId: "get_user_by_id"
parameters:
- name: "id"
in: "path"
description: "The id that needs to be fetched."
required: true
schema:
type: "string"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspUser'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
patch:
security:
- bearerAuth: []
summary: "Updated user"
description: "This can only be done by the logged in user."
operationId: "update_user"
parameters:
- name: "id"
in: "path"
description: "id that need to be updated"
required: true
schema:
type: "string"
requestBody:
required: true
content:
application/json:
schema:
$ref: "#/components/schemas/RqsUser"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
client:
$ref: '#/components/schemas/RspUser'
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
delete:
security:
- bearerAuth: []
summary: "Delete user by user id"
operationId: "delete_user_by_id"
parameters:
- name: "id"
in: "path"
description: "The id that needs to be deleted."
required: true
schema:
type: "string"
responses:
"200":
description: API accepted
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
/users/{id}/blob:
post:
security:
- bearerAuth: []
summary: "Get user startup kit"
operationId: "get_user_blob_by_id"
parameters:
- name: "id"
in: "path"
description: "The id that needs to be fetched."
required: true
schema:
type: "string"
requestBody:
required: true
content:
application/json:
schema:
type: "object"
properties:
pin:
type: string
responses:
"200":
description: API accepted
content:
application/zip:
schema:
type: "string"
format: "binary"
"403":
description: Forbidden
content:
application/json:
schema:
type: "object"
properties:
status:
type: "string"
components:
securitySchemes:
bearerAuth: # arbitrary name for the security scheme
type: http
scheme: bearer
bearerFormat: JWT # optional, arbitrary value for documentation purposes
schemas:
Project:
type: "object"
properties:
frozen:
type: boolean
public:
type: boolean
short_name:
type: "string"
example: "EXAM"
title:
type: "string"
example: "International project to detect COVID on medical images with Federated Learning"
description:
type: string
app_location:
type: string
server1:
type: "string"
starting_date:
type: "string"
end_date:
type: "string"
BaseUser:
type: "object"
required:
- organization
- email
properties:
name:
type: "string"
organization:
type: "string"
email:
type: "string"
role:
type: "string"
enum: ["user", "org_admin", "proj_admin"]
approval_state:
type: "integer"
format: "int32"
description: "User approval state"
RqsUser:
allOf:
- $ref: '#/components/schemas/BaseUser'
- type: "object"
properties:
password:
type: "string"
RspUser:
allOf:
- $ref: '#/components/schemas/BaseUser'
- type: object
properties:
id:
type: "integer"
format: "int64"
BaseClient:
type: "object"
required:
- name
- organization
properties:
name:
type: "string"
example: "site-1"
organization:
type: "string"
example: "nvidia"
capacity:
type: "object"
properties:
num_gpus:
type: "integer"
format: "uint8"
mem_per_gpu_in_GiB:
type: "integer"
format: "uint8"
approval_state:
type: "integer"
format: "int64"
RspClient:
allOf:
- $ref: '#/components/schemas/BaseClient'
- type: object
properties:
id:
type: "integer"
format: "int64"
ListOfClients:
type: array
items:
$ref: '#/components/schemas/RspClient'
ListOfUsers:
type: array
items:
$ref: '#/components/schemas/RspUser'
externalDocs:
description: "Find out more about Swagger"
url: "http://swagger.io"
Project Freezing
Since the project configuration contains information required by clients and users, modifying project information after clients and users are created can cause dependency issues. The project_admin must freeze the project after finalizing all project-related information to enable user sign-up. Once frozen, the project cannot be unfrozen through the Dashboard web interface.
Database Schema
The following diagram illustrates the schema of the underlying database used by the backend APIs:
