FLARE CellNet Architecture

FLARE CellNet Architecture

Purpose and Scope

CellNet is FLARE’s unified communication layer that provides secure, scalable messaging between distributed federated learning components. It abstracts away network transport details and provides a consistent API for both small messages and large data transfers.

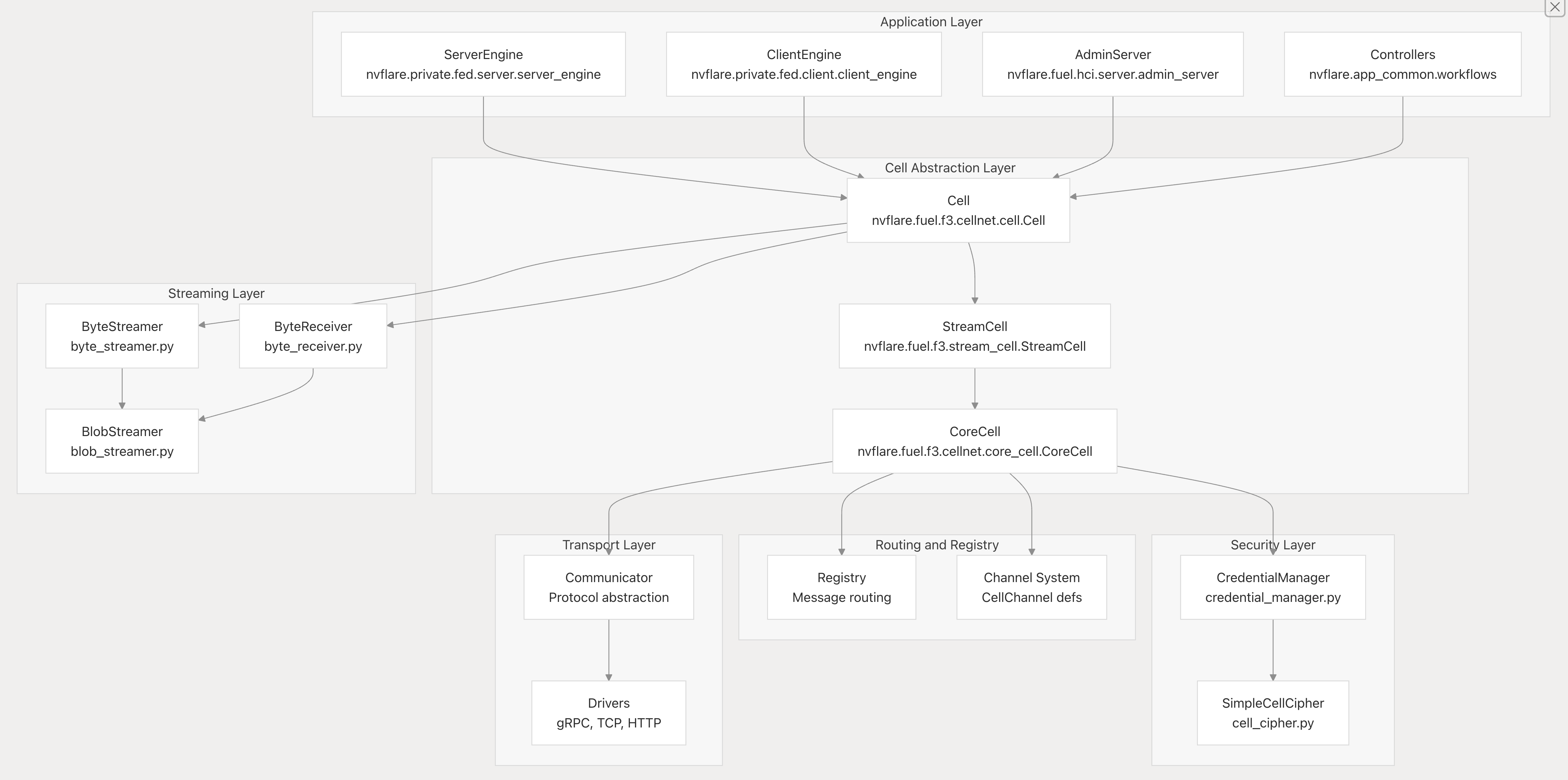

Position in NVFLARE Architecture: CellNet sits between the application layer (Controllers, Executors, Admin commands) and the network transport layer (gRPC, TCP, HTTP drivers). All NVFLARE components communicate through CellNet, including:

  • Server-to-client task distribution

  • Client-to-server result submission

  • peer-to-peer communication

  • Admin command execution

  • Cross-site auxiliary communication

  • Job deployment and management

Key Design Goals:

  • Unified API: Single interface for both small messages and large data streams

  • Transport Agnostic: Supports multiple network protocols (gRPC, TCP, HTTP)

  • Hierarchical Addressing: FQCN-based routing for multi-level cell hierarchies

  • Secure Communication: Built-in encryption and authentication

  • Flow Control: Automatic chunking and flow control for large transfers

Three-Layer Architecture:

  • CoreCell: Basic message routing, connection management, security

  • StreamCell: Large data streaming with chunking and flow control

  • Cell: High-level request/reply patterns with automatic channel detection

Layered Cell Architecture

Three-Layer Design

The CellNet architecture consists of three layers, each extending the previous:

Layer 1: CoreCell - Basic Message Infrastructure provides fundamental messaging infrastructure:

Key Responsibilities:

  • Message Handling - Routes messages to appropriate handlers based on channel/topic

  • Connection Management - Manages listeners (incoming) and connectors (outgoing)

  • Callback Registry - Stores message handlers in req_reg: Registry

  • Agent Tracking - Maintains agents: Dict[str, CellAgent] for remote cells

  • Request Tracking - Tracks pending requests in waiters: Dict[str, _Waiter]

  • Security - Delegates to credential_manager: CredentialManager for encryption

Core Methods:

  • send_request (channel, target, topic, request, timeout, …) - Send message and wait for reply

  • fire_and_forget (channel, topic, targets, message, …) - Send without waiting

  • broadcast_request (channel, topic, targets, request, …) - Send to multiple targets

  • register_request_cb (channel, topic, cb, …) - Register callback for channel/topic

Layer 2: StreamCell - Large Data Transfer

The StreamCell adds large data transfer capabilities on top of CoreCell:

Key Components:

  • cell: CoreCell - Wrapped CoreCell for basic messaging

  • byte_streamer: ByteStreamer - Sends data as chunked streams

  • byte_receiver: ByteReceiver - Receives and reassembles chunks

  • blob_streamer: BlobStreamer - Optimized for in-memory BLOBs

Streaming Methods:

  • send_stream (channel, topic, target, message, …) - Send byte stream with flow control

  • send_blob (channel, topic, target, message, …) - Send BLOB (fits in memory)

  • register_stream_cb (channel, topic, stream_cb, …) - Register stream receiver

  • register_blob_cb (channel, topic, blob_cb, …) - Register BLOB receiver

Streaming Protocol:

  • Automatic chunking into configurable chunk sizes (default 1MB)

  • Flow control with sliding window and ACKs

  • Progress tracking via StreamFuture

Layer 3: Cell - Intelligent Request/Reply

The Cell class provides unified interface for streaming and non-streaming messages:

Key Features:

  1. Dynamic Method Dispatch:

  • Intercept method calls Checks if channel requires streaming via _is_stream_channel()

  • Routes to appropriate implementation:

  • Stream channels → _broadcast_request(), _send_request(), etc.

  • Non-stream channels → core_cell.broadcast_request(), etc.

  1. Channel Classification:

Excluded Channels:

  • CellChannel.CLIENT_MAIN - Admin commands

  • CellChannel.SERVER_MAIN** - Task distribution

  • CellChannel.RETURN_ONLY** - Internal replies

  • CellChannel.CLIENT_COMMAND** - Client commands

  • Other internal channels

  1. Request Tracking:

  • Maintains requests_dict: Dict[str, SimpleWaiter] for pending requests

  • SimpleWaiter tracks request state and receiving progress

  • Reply handling via _process_reply()

  1. Callback Adaptation:

  • Adapter class wraps application callbacks for streaming

  • Handles encoding/decoding of stream payloads

  • Sends replies back via RETURN_ONLY channel

  1. FQCN: Fully Qualified Cell Name:

Every cell is identified by a Fully Qualified Cell Name (FQCN), which is a dot-separated hierarchical name:

<site_name>[.<job_id>[.<rank>]]

  1. End-to-end encryption

Message Structure and Addressing

Channel and Topic Addressing

F3 CellNet routes messages using a two-level addressing scheme: channel and topic. This is stored in message headers:

Predefined Channels

Constant

Value

Purpose

CellChannel.CLIENT_MAIN

“admin”

Admin commands

CellChannel.SERVER_MAIN

“task”

Task distribution

CellChannel.AUX_COMMUNICATION

“aux_communication”

Application-defined

CellChannel.RETURN_ONLY

“return_only”

Internal reply routing

CellChannel.SERVER_COMMAND

“server_command”

Server commands

Communication Patterns

  • Request-Reply Pattern – send request and wait for reply

  • Fire-and-Forget Pattern – send message without waiting for reply

  • Broadcast Pattern – send to multiple targets

Streaming Components Overview

The streaming system is organized into sender components, receiver components,and stream abstractions:

Key Streaming Classes:

Key Streaming Classes

Class

Purpose

ByteStreamer

Sends byte streams as chunks

ByteReceiver

Receives and reassembles chunks

BlobStreamer

Wraps blobs for streaming

TxTask

Per-stream sending task

RxTask

Per-stream receiving task

Performance and Statistics

Statistics Collection: CellNet includes comprehensive statistics collection for monitoring and debugging: Statistics are collected via StatsPoolManager with categories for different operation types and cell FQCNs.
